NUC 11 Essential


  • Intel Celeron N4505
  • Cores 2, Threads 2
  • Intel® UHD Graphics
  • V10 Passmark Score 1170

Please contact sales if you would like to purchase this unit

Contact Sales

NUCNUC11ATKC2 NUC 11 Essential

Base CPU Frequency


Turbo Boost

2.70GHz Burst

Cores & Threads

Cores 2, Threads 2


Intel® UHD Graphics

Max Memory



Intel Wireless-AC 9462 dual band 1x1 w/diversity + Bluetooth 5.1

Max Resolution

3840 x 2160

Video Output

1x HDMI 2.0b, 1x DP 1.4


4x USB 3.2, 2x USB 2.0, 1x 3.5mm audio jack, 1x 3.5mm microphone jack

The Essential Mini PC for Everyday Computing

The name says it all. The Intel® NUC 11 Essential Atlas Canyon NUC is the essential, everyday solution for kiosks, collaboration and streaming, and digital signage. Powered by Intel® Celeron® processors, these powerful, cost-efficient systems deliver Intel reliability and quality.

Performance-Pack. Value Priced.

Experience exceptional performance with dual-core Intel® Celeron® processors and up to 32GB dual-channel memory. Atlas Canyon provides storage flexibility with 64GB soldered down eMMC storage on select SKUs, or an NVMe drive of up to 8TB to store all your pictures and videos. Quality and flexibility are built in, with numerous available mounting options, HDMI and DisplayPort video ports to drive your 4K displays, six USB ports, and an external front panel header for convenient remote control by alternate power sources.

Intel Reliability and Quality in a Slim, Cost-Effective Design

Atlas Canyon NUCs and Boards deliver the essentials—great performance and great value in a slim form factor backed by a three-year warranty. With pre-installed Intel® 802.11ac wireless, for connectivity right out of the box, you can immediately access files in the cloud; and with built-in Bluetooth 5.1, you can seamlessly connect all your wireless peripherals. From retail kiosks to digital signage to collaboration and streaming in your home, office, or school, Atlas Canyon NUCs offer great performance at an unmatched value.

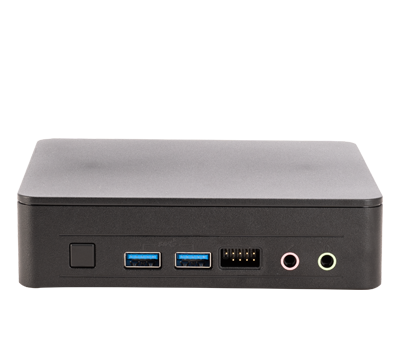

  1. Intel Celeron N4505
  2. Intel® UHD Graphics, up to 750MHz
  3. Dual-Channel DDR4-2933 SODIMMS, 1.2V, 32GB maximum
  4. M.2 22×80 key M slots for PCIe x4 NVMe SSDs
  5. Intel® Wireless AC9462 M.2 card, dual-band 1×1 w/ diversity + Bluetooth® v5.1, internal antenna
  6. 2x front USB 3.2
  7. External 9-pin Front Panel header
  8. 3.5mm front microphone jack
  9. 3.5mm front stereo jack

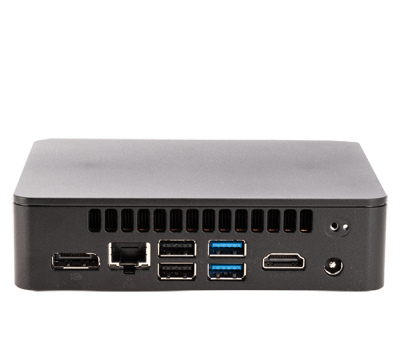

  10. Kensington lock
  11. 1x DisplayPort
  12. 10/100/1000Mbps Ethernet
  13. 2x rear USB 2.0
  14. 2x rear USB 3.2
  15. 1x HDMI 2.0b
  16. 19VDC 65W power supply
