NUC12UTv7 Full

P360 Ultra

Intel® Core i7-12700, P360 Ultra

Workstation|Fanned|Made by Intel

With cutting-edge performance packed into a sleek design, the P360 Ultra features a high-performance 12th Gen Intel Core i7-12700 vPro processor to power through even the most demanding tasks. With support for up to 128GB DDR5 memory with support for ECC, lightning-fast NVMe SSD storage, and multiple ports for connectivity and peripherals, the P360 Ultra workstation is the perfect solution for a wide range of professional applications. Whether you’re a content creator, graphic designer, or engineer, the P360 Ultra v7 delivers the performance and versatility you need to take your workflow and productivity to the next level.



Take your professional applications to the next level with the addition of Nvidia series graphics cards. With options up to the A2000-12GB offering high-end graphics performance, the P360 Ultra can handle the most demanding 3D modelling, simulation, and rendering tasks with ease. Whether you’re creating stunning visual effects or designing complex architectural models, the P360 Ultra with Nvidia graphics delivers unparalleled performance and precision. Experience smooth, lag-free workflows and fast rendering times, allowing you to focus on bringing your creative vision to life. With the P360 Ultra and Nvidia graphics, the possibilities are endless.

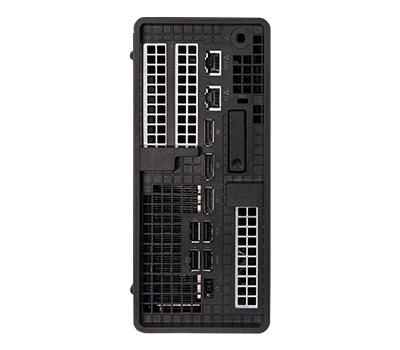

The P360 Ultra features two Thunderbolt 4 ports, five USB 3.2 Gen2 ports, three DisplayPorts, and two LAN ports (2.5Gb and 1.0Gb), offering lightning-fast network connectivity, high-quality display outputs, and enough ports to power all of your peripherals. A PCIe x4 expansion slot allows for additional I/O and functionality. In addition, all models contain Intel vPro Technology to protect your system from increasingly sophisticated threats. No matter the task at hand, the P360 Ultra provides the connectivity options you need to work efficiently and securely with all your essential peripherals. With the P360 Ultra, tailor your workstation to suit your specific requirements for demanding workloads.

Business SystemsWorkstation Intel

Form

8lbs | 19 × 11.75 × 8.5 inch
  1. Intel Core i7-12700
  2. Intel UHD 770 Graphics
  3. Dual Channel DDR5-4800 SODIMMs, 128GB max
  4. 2x M.2 SSD slots
  5. 1x 3.5mm Audio Jack
  6. 1x front USB 3.2 Type-A port
  7. 2x Thunderbolt 4 ports
  8. 1x 2.5Gb LAN port
  9. 1x 1Gb LAN port
  10. 1x Kensington Lock
  11. 3x DisplayPort 1.4 ports
  12. 4x rear USB 3.2 Type-A ports
  13. 1x 230W power supply

Specification

Processor

Intel® Core™ i7-12700 Processor 25M Cache, up to 4.90 GHz

Turbo boost

4.9GHz Turbo

Cores / threads

Cores 12, Threads 20

Operating temp.

0–50°C Ambient Operating Temp

Graphics

Max Resolution 7680 × 4320  |  Intel UHD 770 Graphics

Dimensions

8lbs | 19 × 11.75 × 8.5 inch

Memory

128GB

Storage

512GB PCIe SSD

Networking

1x 2.5Gb LAN, 1x 1Gb LAN, Wi-Fi 6E + Bluetooth 5.3

Inputs

2x Thunderbolt 4, 5x USB 3.2 Type-A, 1x 3.5mm Audio Jack

Power supply

20V input range | 20V 230W power supply included

Certified OS

Windows 10 IoT | Windows 11 (Pro, Home and IoT) | Linux (Ubuntu)

Certificates & regulations

EMC / RF

FCC/IC | VCCI | BSMI | KC | RCM | TUV-GS | cTUVus | IEC60950-1 & IEC62368 CB Report/Certificate | Saudi Arabia EQM | Kuwait KUCAS | China CCC Mark | South Africa SABS | Russia/Belarus/Kazakhstan/Kyrgyzstan/Armenia-EAC | Morocco-CM | Mexico-NOM | Serbia KVALITET | Ukraine UKrCEPRO | India-BIS | China SRRC | Indonesia-SDPPI | Malaysia-SIRIM | Philippines-NTC

Configuration

Customise your NUC with the options below and they will all come pre-installed.

Product Build Options
+$0.00

To fully utilize the vPro enabled chipset on this device to its potential, SprinxleIQ with remote manageability or AMT will need to be configured. If you would like us to configure SprinxleIQ or AMT, we can do that for you.

AMT Configuration Option

+$0.00

This unit comes with 16GB DDR5 Memory. Upgrade now and increase your memory as high as 128GB at a discounted price.

Memory (RAM) *

+$0.00

This unit comes pre-installed with a 512GB Gen4 PCIe M.2 SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

M.2 Gen4 Storage Option *

+$0.00

This unit comes pre-installed with a 128GB M.2 NVMe PCIe SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

M.2 Gen4 Storage Option

+$0.00

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

Operating System *

+$0.00

optional video card

Video/Add-In Card

+$0.00

This unit comes with 3 FREE years of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 5 years.

Extended Support Service *

+$0.00

DP Port Accessories

+$0.00

Second DP Port Accessories

+$0.00

Thunderbolt Port Accessories

+$0.00

Here is a list of available accessories that connect to a USB 3.1 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.2 Port Accessories

+$0.00

Mouse and Keyboard Pack

+$0.00

USB OS Restore Key
