Onyx Motherboards

Onyx i7 Board

NUC13OXBi7
  • Intel® Core™ i7-13700H
  • Cores 14, Threads 20
  • Intel® Iris® Xe Graphics
  • Passmark Coming Soon...

Now Shipping

Product Build Options

Memory (RAM)*

This unit comes with 8GB DDR5 Memory. Upgrade now and increase your memory as high as 96GB at a discounted price.

M.2 Gen4 Storage Option*

This unit comes pre-installed with a 256GB Gen4 PCIe M.2 SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

Operating System*

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

AX211 Optional vPro Wifi option*

Select the Intel AX211 vPro if the vPro option is selected for the current unit. Otherwise select the regular Intel AX211.

Power Supply*

We can ship this unit with a compatible power supply if you do not already have one.

Extended Support Service*

This unit comes with 3 FREE years of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 5 years.

HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Second HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB Type-C Port Accessories

Here is a list of available accessories that connect to a USB Type-C port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.2 Port Accessories

Here is a list of available accessories that connect to a USB 3.1 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Mouse and Keyboard Pack

These are USB mouse and keyboard combo packages.

USB OS Restore Key

This is a USB storage device with a copy of the installation of the OS chosen for this model.

Review Your NUC

Onyx Motherboards

Onyx i7 Board

Volume Quote
NUC13OXBi7 Onyx i7 Board

Base CPU Frequency

Turbo Boost

5.0GHz Turbo

Cores & Threads

Cores 14, Threads 20

Graphics

Intel® Iris® Xe Graphics

Max Memory

96GB

Networking

1x 2.5Gb LAN

Max Resolution

7680 × 4320

Video Output

2x HDMI 2.1 TDMS, 2x DP 2.0 via USB-C (Alt-DP)

I/O

2x USB 4.0 Type-C, 3x USB 3.2 Type-A, 1x USB 2.0 Type-A, 1x 3.5mm stereo headset jack

Unmatched Performance for Modern Business

Onyx is the latest and greatest in ultra-small form factor compute power from Simply NUC, driving unmatched performance for modern business from the desk to the edge to the cloud and back. Powered by Intel’s 13th Gen Raptor Lake 13700H processor and kept cool with Simply NUC’s Dual Exhaust Cooling solution, Onyx has support for up to 96GB of DDR5-5200 memory, up to 16TB of storage, and off-the-charts benchmark results, delivering all the power, without the tower.

Onyx – Defined by You, Built for You

Onyx may be a Simply NUC product, but it was defined by our customers, and built to meet your needs, with key features like dual HDMI 2.1, dual USB 4.0 Type-C, and a 2.5Gb Ethernet port to name a few. The Onyx motherboard gives you the flexibility to embed high performance compute power into any space. From office workstations, to on-prem heavy edge computing, to robotics and sophisticated IoT networks, Onyx i7 has the flexibility and performance options to perfectly serve your usage requirements.

Performance with Uncompromised Security and Reliability

Powered by Intel’s 13th Gen Raptor Lake 13700H processor, featuring 14 cores and 20 threads, Onyx packs outsized performance into a small footprint. Raptor Lake processors feature Intel Thread Director, using machine learning to schedule tasks on the right core at the right time, preventing background tasks from slowing you down, and keeping the focus on the primary workload. Keep your fleet of 24×7 tested computers with Intel Boot Guard, keeping your system’s pre-OS environment safe from viruses and malicious software attacks. Upgrade to Onyx i7 today, and enjoy uncompromised and highly reliable processing power.

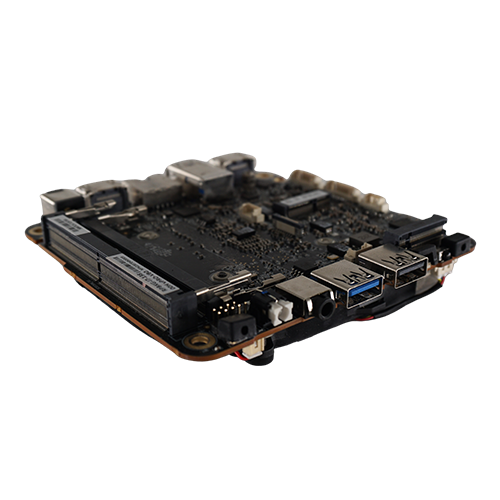

  1. Intel® Core™ i7-13700H
  2. Intel® Iris® Xe Graphics
  3. 2x DDR5-5200 SO-DIMM, 96GB max
  4. 1x M.2 22×80 M-key supporting x4 PCIe Gen4 or SATA SSDs

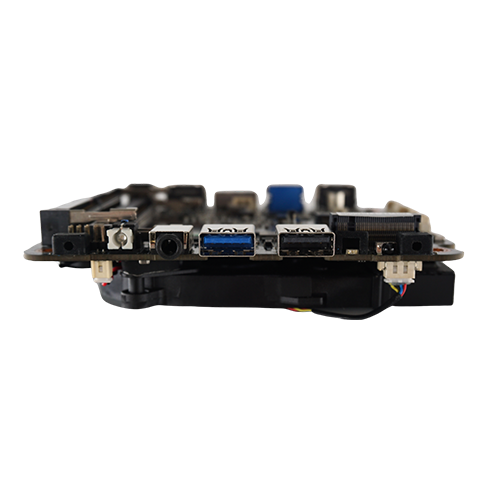

  5. 1x 3.5mm stereo headset jack
  6. 1x Front USB 3.2 Gen2 Type-A
  7. 1x Front USB 2.0 Type-A

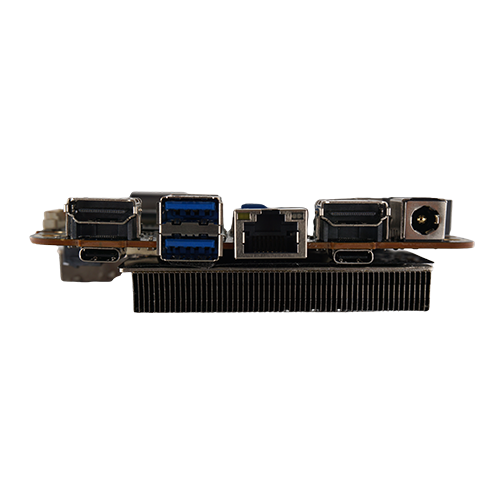

  8. 2x HDMI 2.1
  9. 2x Rear USB 4 Type-C (Alt-DP)
  10. 2x Rear USB 3.2 Gen2 Type-A
  11. 1x Intel 2.5Gb LAN
  12. 1x 19VDC, 90W Power Supply

Product Brief

Technical Specifications
