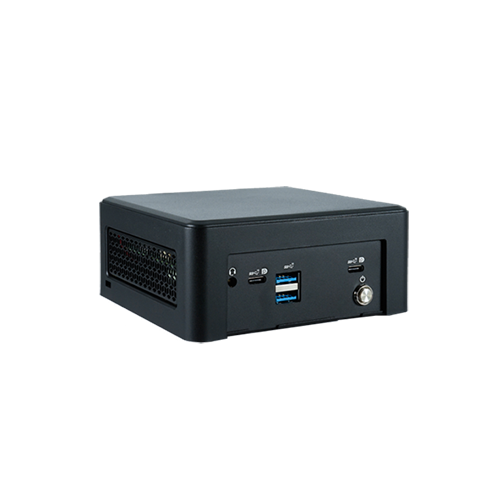

Topaz 3

Topaz 3 i5

NUC13TZi5
  • Intel® Core™ i5-1340P
  • Cores 12, Threads 16
  • Intel® Iris® Xe Graphics
  • Passmark Coming Soon...

Now Shipping

Product Build Options

Memory (RAM)*

This unit comes with 4GB DDR4 Memory. Upgrade now and increase your memory as high as 64 GB at a discounted price.

M.2 Gen4 Storage Option*

This unit comes pre-installed with a 256GB Gen4 PCIe M.2 SSD primary storage device. Upgrade for more SSD storage at a discounted price.
*See our legal page for our SSD size classification.

M.2 Secondary Storage Option

This unit can be configured with an additional m.2 storage device. Get the most storage out of your NUC by adding a second storage device to your order.
*See our legal page for our SSD size classification.

Operating System*

This is the operating system that will be installed to the primary storage device. Simply NUC will install the OS to the storage device with the highest performance. Contact Sales if you want your OS installed to a specific storage device or if you do not see your desired OS on this list.

NUC Lid Options

These are lid replacements for your NUC unit.

Extended Support Service*

This unit comes with 3 FREE years of Simply NUC support service, which includes part and labor support as well as outbound shipping.

HDMI Port Accessories

Here is a list of available accessories that connect to an HDMI port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

DP Port Accessories

Here is a list of available accessories that connect to a DP port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB Type-C Port Accessories

Here is a list of available accessories that connect to a USB Type-C port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 2.0 Port Accessories

Here is a list of available accessories that connect to a USB 2.0 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

USB 3.2 Port Accessories

Here is a list of available accessories that connect to a USB 3.1 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu!

Mouse and Keyboard Pack

These are USB mouse and keyboard combo packages.

USB OS Restore Key

This is a USB storage device with a copy of the installation of the OS chosen for this model.

Review Your NUC

Topaz 3

Topaz 3 i5

Volume Quote
NUC13TZi5 Topaz 3 i5

Base CPU Frequency

Turbo Boost

4.6GHz

Cores & Threads

Cores 12, Threads 16

Graphics

Intel® Iris® Xe Graphics

Max Memory

64GB

Networking

Intel WiFi 6E AX210 + Bluetooth 5.3, 2x 2.5Gb Ethernet port

Max Resolution

7680x4320

Video Output

1x DP 1.4, 2x DP 1.4 (type-C), 1x HDMI 2.0a

I/O

4x USB 3.2, 2x USB 3.2 Type-C

Evolve your Mini PC Experience

The Topaz 3 NUC harnesses Intel’s latest 13th Gen Raptor Lake 1340P Processor with Iris Xe graphics to provide the most crisp computing experience to date. With up to 64GB of DDR4-3200 memory and up to 10TB of M.2 storage, Topaz 3 has the capabilities you need to evolve your mini PC experience or corporate infrastructure to the latest and greatest technology available. Intel’s 13th Gen 1340P processor ushers a host of new and improved features including increased core counts and an upgraded Intel® Thread Director to increase both your efficiency and your productivity.

Crystal Clear, Clean & Secure Computing

From a home theater to a digital signage kiosk, the Intel® Iris Xe Graphics in Topaz 3 have you covered. With support for up to four 4K displays, you can enjoy crisp visuals from every angle. Take advantage of super-fast networking with dual 2.5Gb LAN ports and onboard TPM 2.0, giving you a robust and secure connection to your home or office network, or ditch the cabling and go wireless with Wi-Fi 6 and Bluetooth 5.2 for that sleek setup look, without sacrificing performance and reliability.

The Number One Choice for your Next Mini PC

Topaz 3 offers a plethora of customization options while maintaining that 4×4 footprint people love. From Gen4 PCIe drives, to I/O options like additional USB ports and serial adapters via the replaceable lid, you have the versatility you need to meet your use case. The Topaz 3 NUC with a 13th Gen Intel® Core 1340P Processor is the number one choice for your mini PC needs for both the home and the office, so get yours, today.

  1. Intel® Core™ i5-1340P
  2. 2x DDR4-3200 SODIMMs, 64GB max
  3. M.2 22×80 for NVMe
  4. Audio combo mic in / line out
  5. 2x USB 3.2 type-C gen 2 ports (DP 1.4 DP++ capable)
  6. 2x front USB 3.2 gen 2
  7. 19VDC 90W power supply adapter connector
  8. 2x rear USB 3.2 gen 2
  9. 1x HDMI 2.0a
  10. 1x DP 1.4
  11. 2x 10/100/1000/2500 Mbps RJ45 Ethernet
