Long Life Mini

NUCLLM2v6CY

  • AMD® Ryzen™ V2546 Processor
  • Cores 6, Threads 12
  • AMD® Radeon™ Vega 6
  • V10 Passmark Score 3845

Out of Stock

NUCLLM2v6CY Long Life Mini

Base CPU Frequency

3.0 GHz

Turbo Boost

3.95 GHz

Cores & Threads

Cores 6, Threads 12

Graphics

AMD® Radeon™ Vega 6

Max Memory

64GB

Networking

1x 10/100/1000/2500 Mbps RJ45 Ethernet, Intel WiFi 6 AX200 + Bluetooth 5.0

Max Resolution

4096x2304

Video Output

2x HDMI 2.1, 2x DP1.4 via Type-C

I/O

1x USB 3.2 Type-A port (front), 1x USB 2.0 Type-A port (front) 2x USB 3.2 Type-C port (rear)

FLEXIBLE CUSTOMIZATION

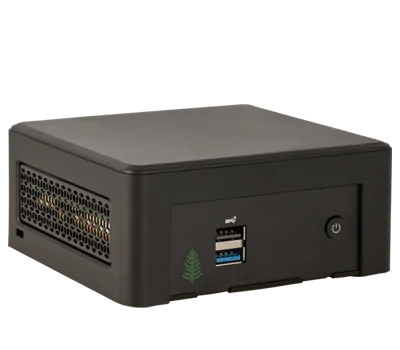

The Simply NUC Cypress Long Life Mini is a computer built with an AMD® Ryzen™ Embedded V2000-series processor, delivering innovation in a small space for embedded solutions. A wireless-AX card can be installed into one of two M.2 slots, leaving the other available slot for a lightning fast SSD. The bottom of the chassis is designed to accommodate mounting options including DIN rail and VESA plate. And there are board SKU options for embedded designs. Finally, whether it’s Windows® 10, Linux, or another OS, these systems are verified to run a wide range of operating systems so you can build the exact solution your clients want.

FEATURE RICH, MAINSTREAM PERFORMANCE

Cypress is a mini computer that’s small in size with features that make it optimal for your embedded solutions. Its rich feature set makes Cypress ideal for mainstream performance usages such as on-prem edge analytics. It offers Intel Wi-fi 6 and a 2.5Gb Ethernet port for flawless communication in cluttered environments, TPM for secure communications, and four superspeed USB ports for I/O flexibility. And with two DisplayPort (via type-C ports) and two HDMI ports Cypress has plenty of bandwidth to drive four 4K monitors at 60Hz for sophisticated digital signage usages. If more I/O is required a functional lid upgrade can provide extra data, video, or LAN ports.

BUILD EMBEDDED SOLUTIONS

Built to stand the test of time, Simply NUC is committed to supporting the manufacture and sales of Cypress in the same form, fit, and function for seven years from launch. It supports a wide power supply range (12 to 24Vdc) and has an operating temperature range of 0 to 60C for a wide range of embedded usages. Cypress also comes in board SKU options with a serial port header and three USB headers enabling deeply embedded usages such as kiosk, vending machines, and POS.

  1. AMD® Ryzen™ Embedded V2546 Processor
  2. AMD® Radeon™ Vega 6 Graphics
  3. 2x DDR4-3200 SODIMMs, 1.2V, 64GB max
  4. Intel WiFi 6 AX200 and Bluetooth (option)
  5. 1x front USB 2.0 type-A port
  6. 1x front USB 3.2 type-A ports
  7. 12V – 24V power supply
  8. 2x rear USB 3.2 type-C ports with DP Alt-mode (DP 1.4)
  9. 2x HDMI 2.0 Port
  10. 1x 10/100/1000/2500 Mbps RJ45 Ethernet ports
